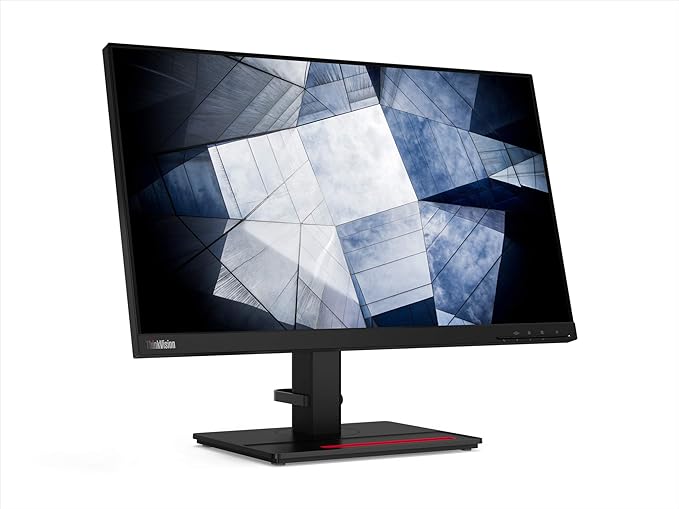

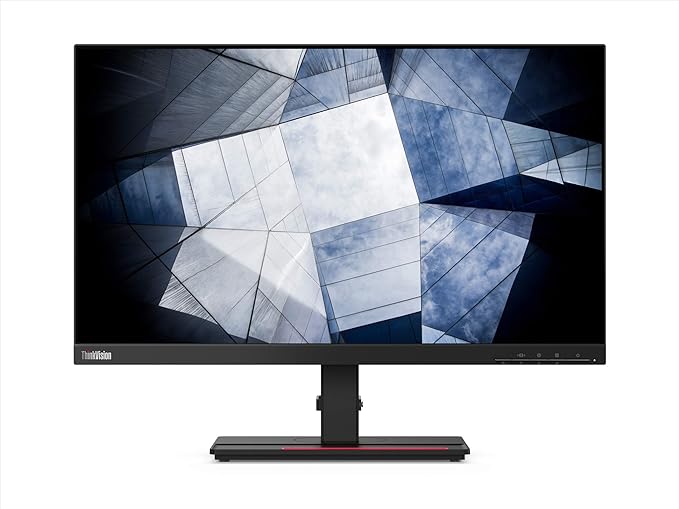

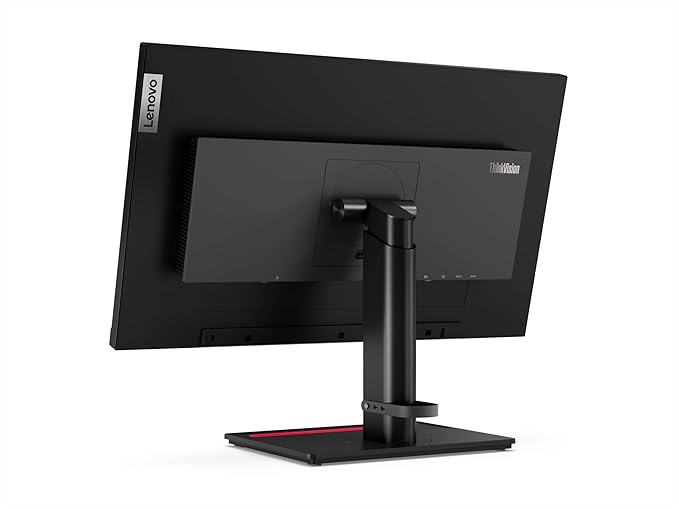

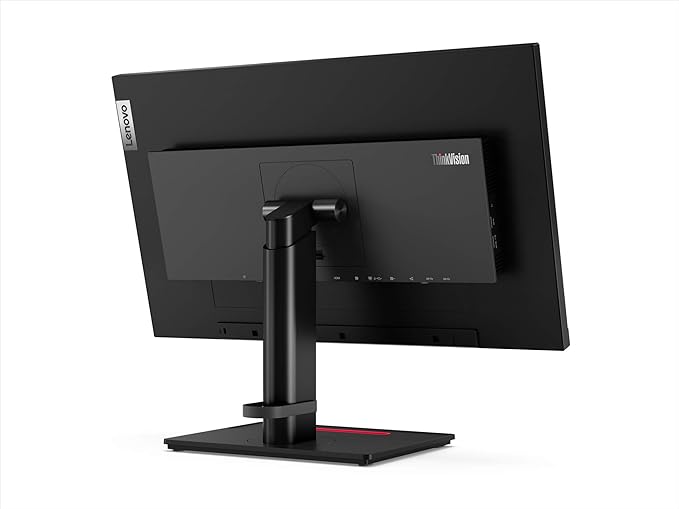

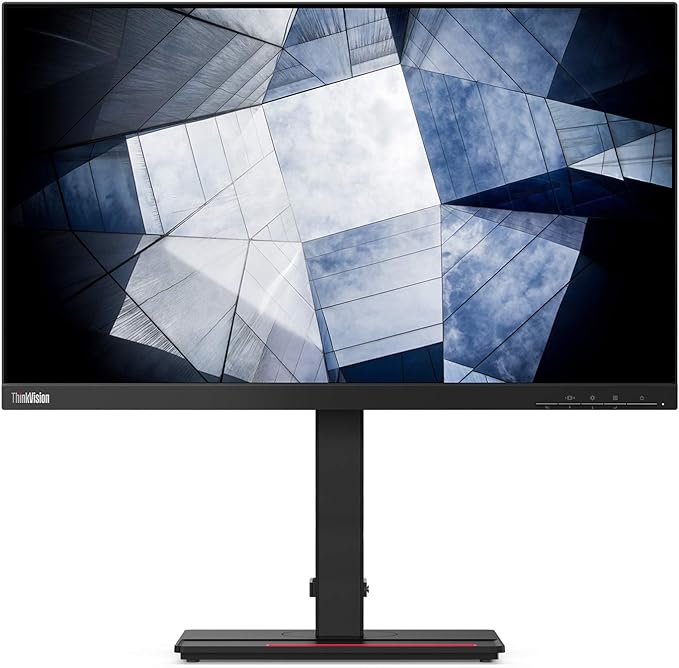

Lenovo ThinkVision P24h-20 LED display 60,5 cm (23.8″) 2560 x 1440 pixels Quad HD
Monitor Specifications
Dimensions | Depth | 205 mm (8.07 in.) |
Height | 570.5 mm (22.46 in.) | |
Width | 540 mm (21.25 in.) | |
VESA mount | Supported | 100 mm x 100 mm (3.94 in. x 3.94 in.) |
Stand | Tilt | Range: -5° ~ 35° |
Image | Viewable image size | 604.04 mm (23.8 in.) |
Maximum height | 296.35 mm (11.67 in.) | |
Maximum width | 526.85 mm (20.74 in.) | |
Pixel pitch | 0.2058 mm (0.01 in.) | |
Power input | Supply voltage | 100-240V AC |
Max supply current | 1.5 A | |
Power consumption
Note: Power consumption figures are for the monitor and the power supply combined Note: Typical power |
Normal operation | <132 W (max)
<23 W (typical) |
Standby/Suspend | <0.5 W (W/O USB C) | |
Off | <0.3W at 100VAC and 240VAC | |
Video input(DP) | Interface | DP |
Input signal | VESA TMDS (Panel Linkâ„¢) | |
Horizontal addressability | 2560 pixels (max) | |
Vertical addressability | 1440 lines (max) | |
Clock frequency | 300 MHz | |
Video input(HDMI) | Interface | HDMI |
Input signal | VESA TMDS (Panel Linkâ„¢)/HDMI | |
Horizontal addressability | 2560 pixels (max) | |
Vertical addressability | 1440 lines (max) | |
Clock frequency | 300 MHz | |
Communications | VESA DDC/CI | |
Supported Display Modes | Horizontal frequency
Vertical frequency Native Resolution |
30 kHz – 114 kHz
48 Hz – 75 Hz 2560 x 1440 at 60 Hz |
Temperature | Operating | 0° to 40° C (32° to 104° F) |
Storage | -20 to 60° C (-4° to 140° F) | |
Shipping | -20 to 60° C (-4° to 140° F) | |
Humidity | Operating | 10% to 80% non-condensing |
Storage | 5% to 95% non-condensing | |
Shipping | 5% to 95% non-condensing |
