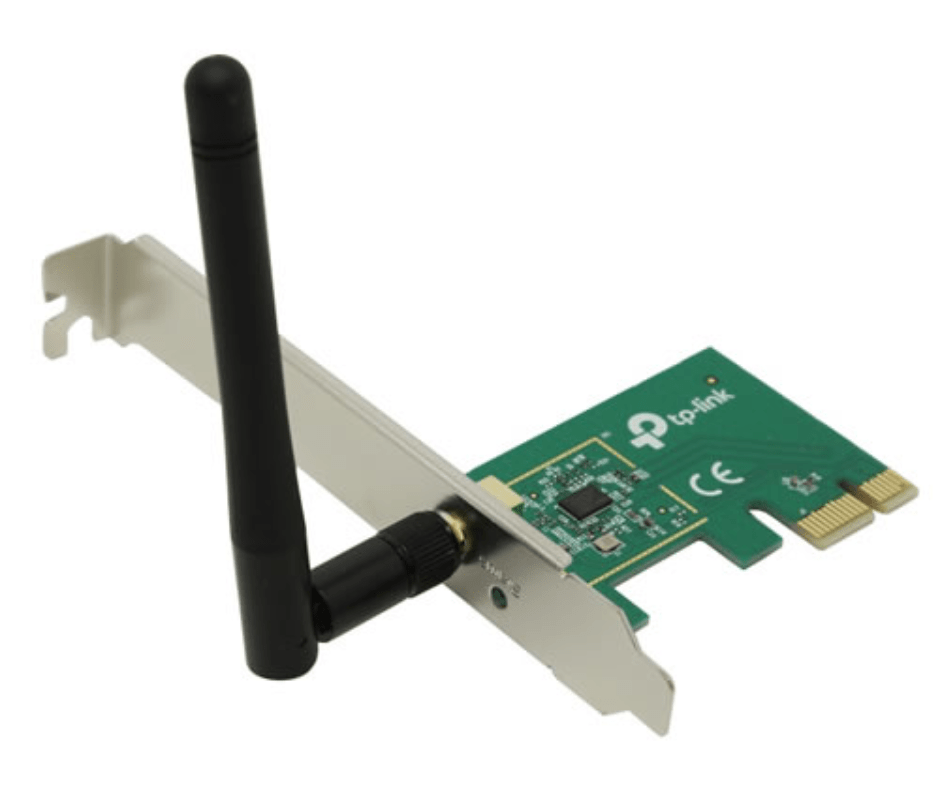

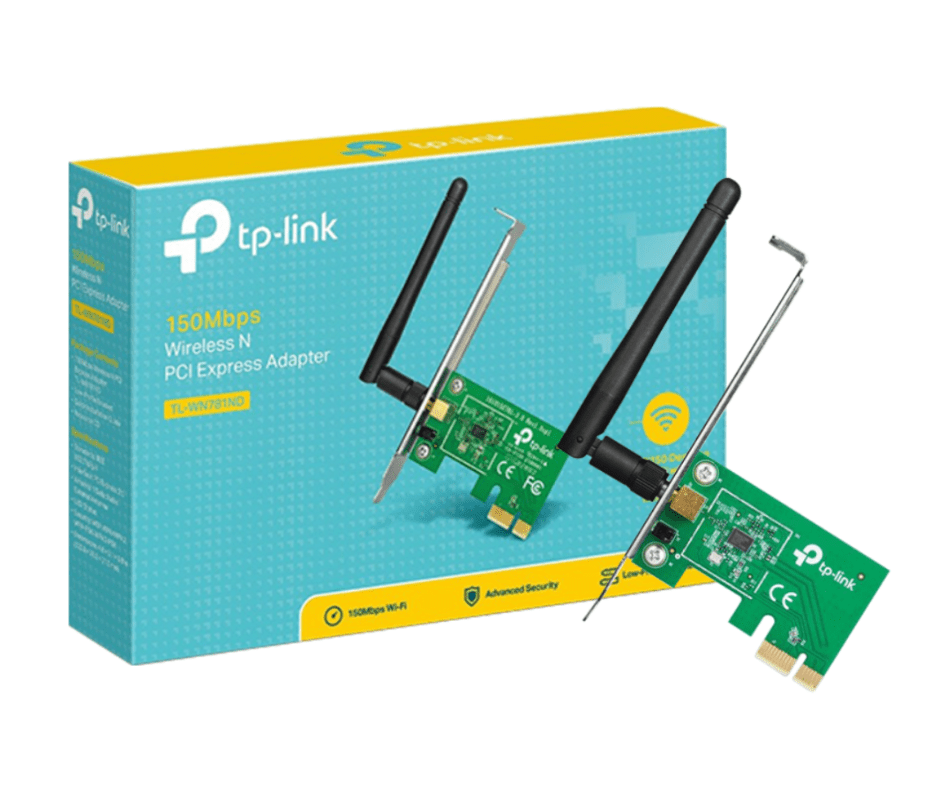

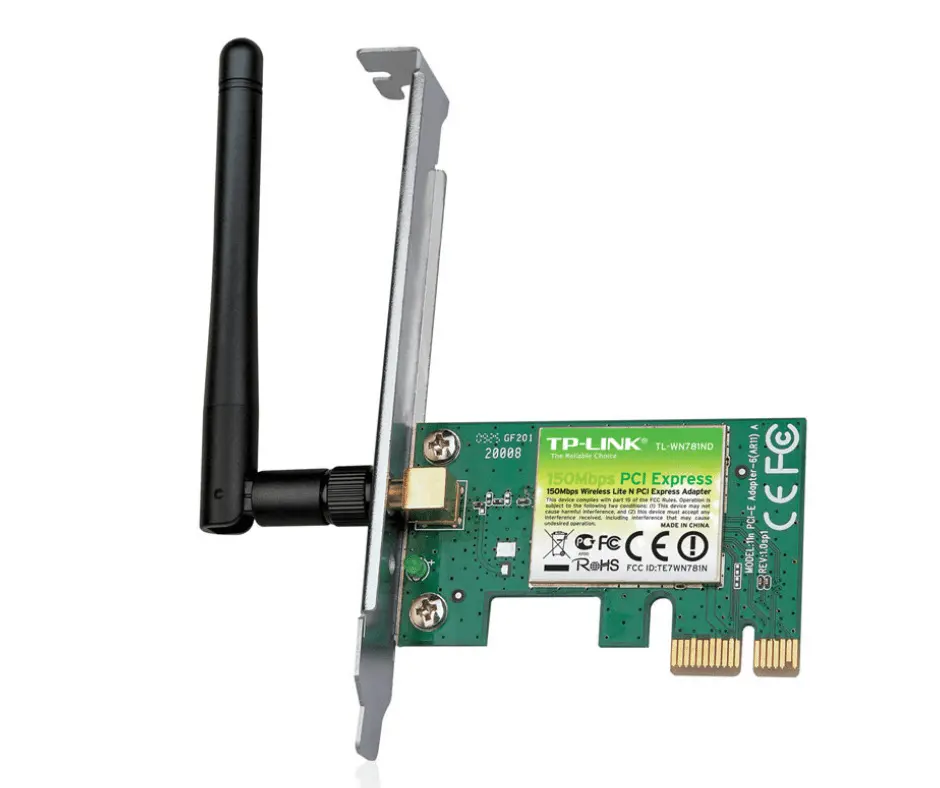

TL-WN781ND – Wireless N – PCI Express Adapter – 150Mbps

TL-WN781ND – Wireless N – PCI Express Adapter – 150Mbps

Key Features

Up to 150Mbps wireless transmission rate
Provides PCI Express interface
Advanced secure connection with WPA/WPA2 encryption
Bundled utility enables easy management

Specification

Hardware Features
Interface     PCI Express
Dimensions ( W x D x H )     4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)
Antenna Type     Detachable Omni Directional (RP-SMA)
Antenna Gain     2dBi

Wireless Features
Wireless Standards     IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency     2.400-2.4835GHz
Signal Rate     11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity     130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power     <20dBm(EIRP)
Wireless Modes     Ad-Hoc / Infrastructure mode
Wireless Security     Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology     DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
