How This Product Works

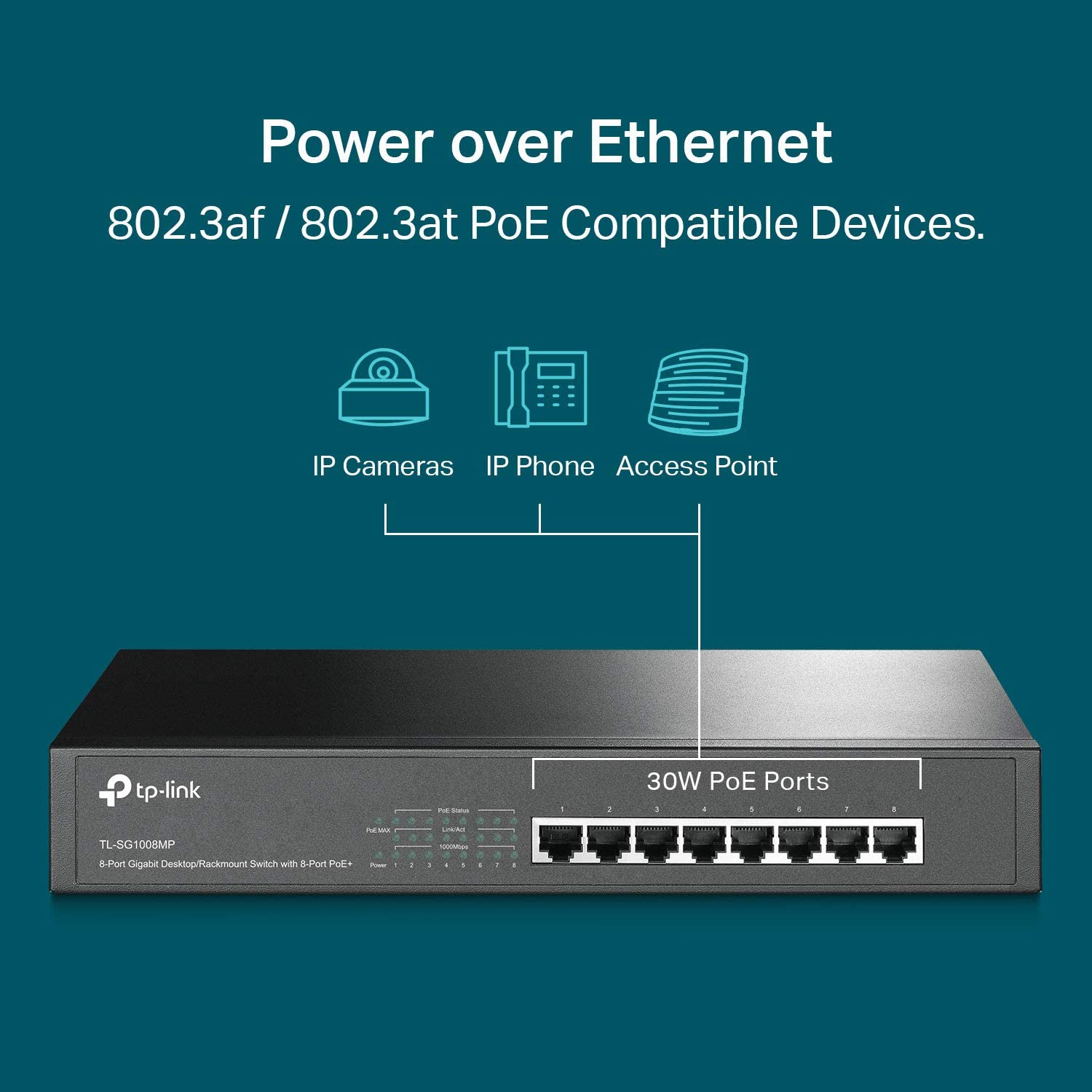

All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

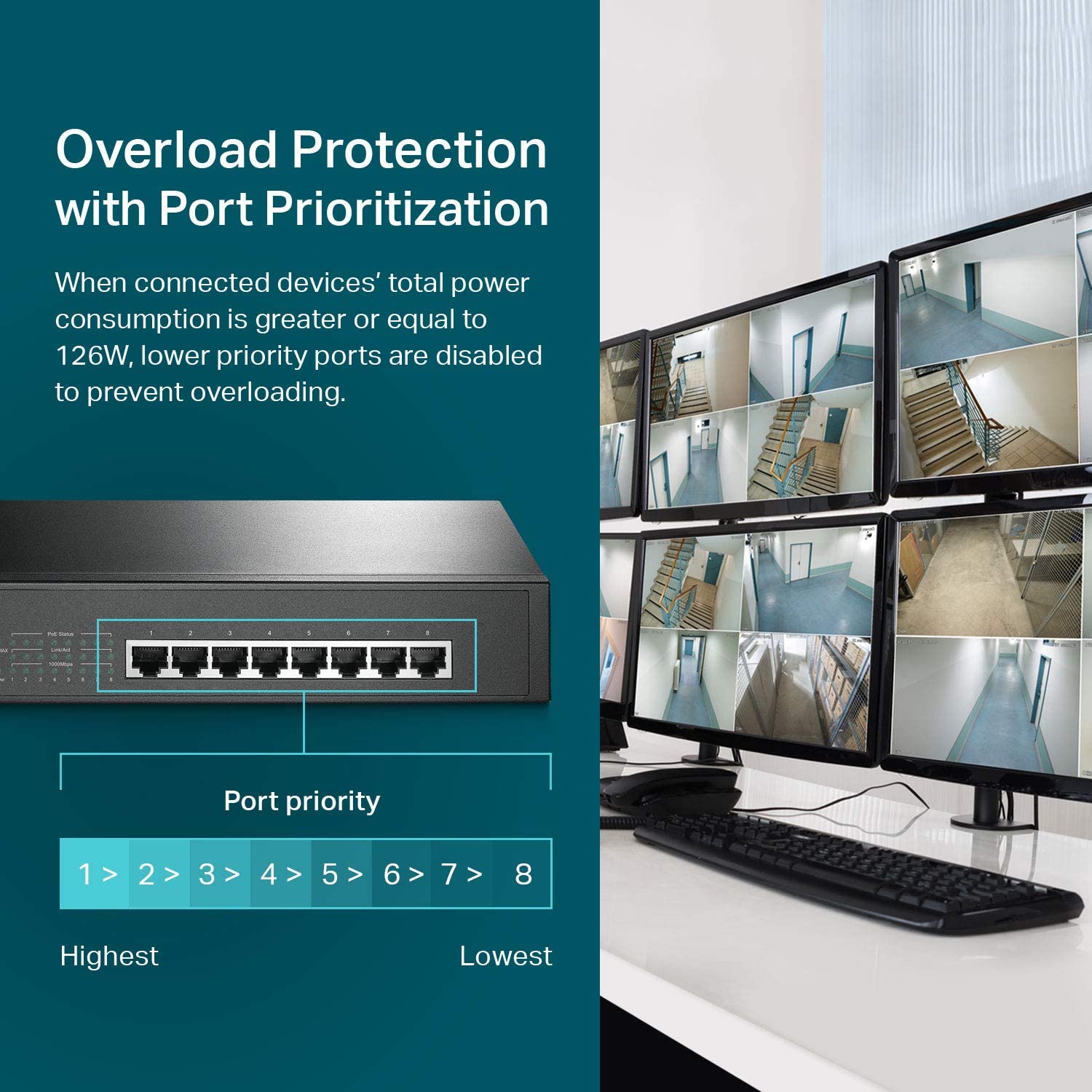

Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4, 5 and 7 are using 30W (maximum power per port is 30W, the system power is 126W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2, 4 and 5 will use 30W, and Port 3 will use 25W, while no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.
| HARDWARE FEATURES | |
|---|---|
| INTERFACE | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| NETWORK MEDIA | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| FAN QUANTITY | 1 |
| PHYSICAL SECURITY LOCK | No |
| POWER SUPPLY | 100-240VAC, 50/60Hz |
| PACKET FORWARDING RATE | 11.904 Mpps |
| POE+ PORTS(RJ45) | Standard: 802.3af/at compliant PoE+ Ports: 8 Ports Power Supply: 153W |
| MAC ADDRESS TABLE | 4K |
| BUFFER SIZE | 1.5Mbits |
| JUMBO FRAME | 16 KB |
| SWITCHING CAPACITY | 16Gbps |
| DIMENSIONS ( W X D X H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| MOUNTING | Desktop/Rack Mountable |
| MAX POWER CONSUMPTION | 8.57W(220V/50Hz. no PD connected) 173.65W(110V/60Hz. with 153W PD connected) |
| MAX HEAT DISSIPATION | 29.22BTU/h(no PD connected) 592.15BTU/h(with 153W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| ADVANCED FEATURES | Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| TRANSFER METHOD | Store-And-Forward |
| OTHERS | |
|---|---|
| CERTIFICATION | FCC, CE, RoHS |
| PACKAGE CONTENTS | TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
| ENVIRONMENT | Operating Temperature: 0℃~50℃ (32℉~122℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
