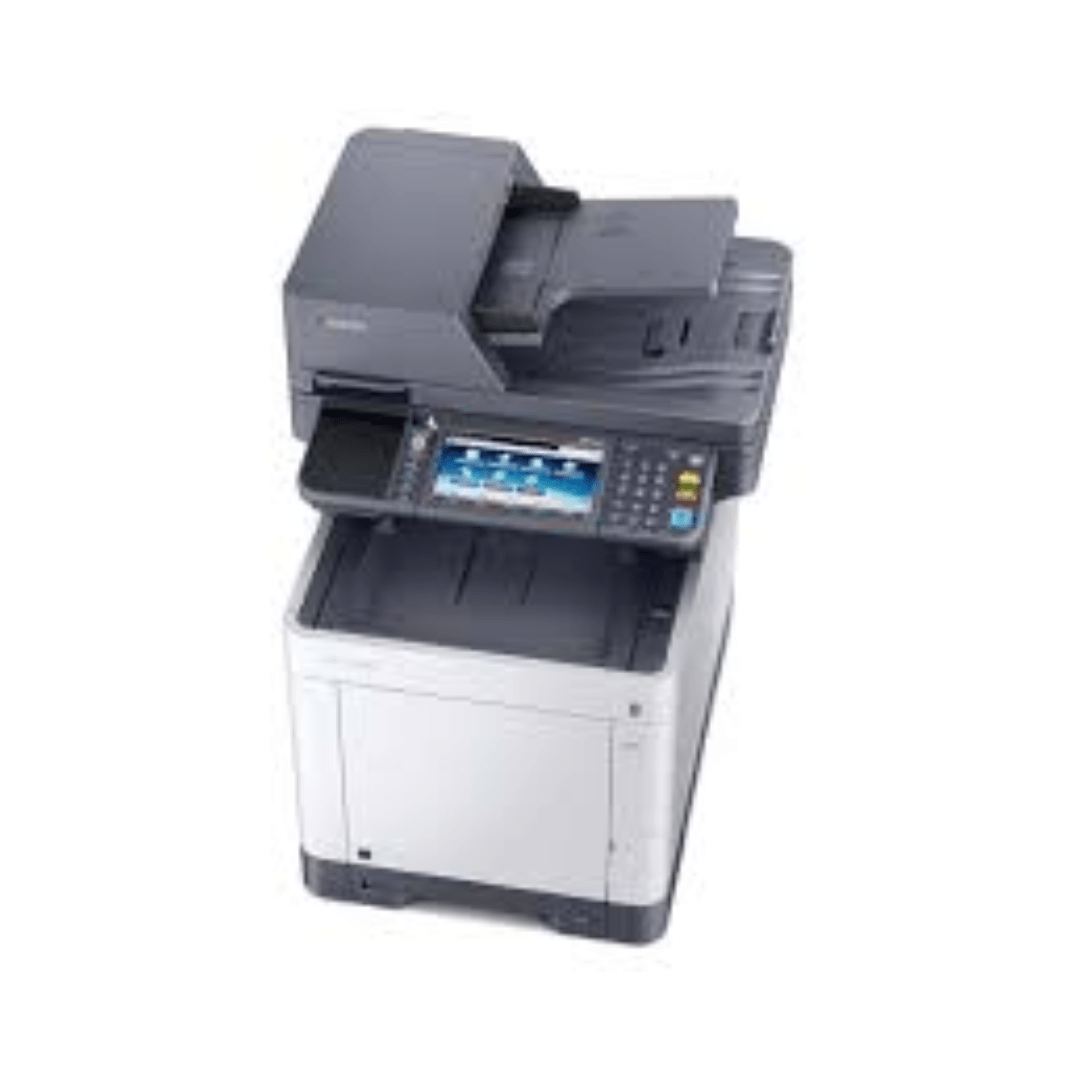

Kyocera ECOSYS M6230cidn A4 Colour MFP Printer
This A4 colour device is designed specifically for medium and large-sized work groups, offering both reliability and fast 30ppm output.
Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
Multi-Functional Products for day-to-day tasks
Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
A3 and A4 printers for all needs
High quality, high reliability and high efficiency are essential.
ECOSYS: The sustainable solution
Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.
Technical Specifications
General
General type:Â Colour multifunctional for A4 format
Technology:Â KYOCERA ECOSYS, Colour Laser
Engine speed:Â Up to 30 pages A4 per minute in colour and b/w
Resolution:Â 1200 x 1200 dpi (print, at reduced speed), 600 x 600 dpi (scan/copy)
Warm-up time:Â Approx. 26 seconds or less
Time to first print:Â Approx. 6.5/7.5 seconds or less in b/w / colour
Time to first copy:Â Approx. 8.5/10 seconds or less in b/w / colour
Dimensions (W x D x H):Â 475 x 558 x 616 mm
Weight:Â Approx. 35,4 kg including toner container
Power consumption: Printing: 496 W Copying: 521 W Low power mode: — W Ready mode: 70 W Sleep-mode: 0.6 W
Power source: AC 220 ~ 240 В, 50/60 Гц
Noise (ISO 7779):Â Noise (Sound pressure level: ISO 7779 / ISO 9296) Copy / Print in colour: 49.5 dB(A) LpA, Quiet mode in colour: dB(A) LpA, Sleep-mode: Immeasurable low
Safety standards: TÜV/GS, CE – This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
General memory:Â Standard 1024 MB, max. 2.048 MB
Processor:Â Cortex-A9 Dual core 1,2 GHz
Controller language:Â PRESCRIBE IIc
Emulations:Â PCL6 (5c/XL), KPDL3 (PostScript 3 compatible), PDF Direct Print, XPS Direct Print
Fonts:Â 93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of onedimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Integrated Accounting:Â 100 department codes
Features:Â Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
Protocol:Â Mobile printing support: KYOCERA Mobile Print app for iOS and Android, AirPrint, Mopria
Applicable OS:Â All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
Copy
Max. original size:Â A4/legal
Digital copy features:Â Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page
Exposure modes:Â Auto, manual: 9 steps
Preset magnification ratios:Â 7 Reductions / 5 Enlargements
Zoom range: 25 – 400 % in 1% steps
Continuous copy: 1 – 999
Image adjustments:Â Text + Photo, Photo, Text, Map, Printed document
Scan
Compression format:Â MMR/JPEG
File type:Â TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
Scan features: Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Original recognition:Â Text, photo, text + photo, light text, optimised for OCR
Max. scan size:Â A4 / legal
Scan functionalities:Â Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN, WIA , WSD scan
Scan resolution:Â 600, 400, 300, 200 dpi, 256 greyscales per colour
Scan speed:Â 60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi,A4 colour), 26 ipm (300 dpi, A4, b/w) (Duplex), 17 ipm (300 dpi, A4 colour) (Duplex)
Paper Handling
Input capacity: 100-sheet multi-purpose tray, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm)
Max. input capacity with options:Â 1,850 sheets
Duplex unit: Duplex as standard supports 60 – 163 g/m²; A4, A5, B5, Letter, Legal
Max. output capacity:Â Max. 250 sheets face-down with paper full sensor
Document processor: Reversing document processor: 75-sheet, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
General paper handling:Â All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.
Standard interface:Â Standard interface: USB 2.0 (Hi-Speed), 2 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT, IPv6, IPv4, IPSec, 802.3az support), optional Wi-Fi (IEEE 802.11b/g/n), 1 eKUIO slot for optional internal print server, Slot for optional SD Card
